How to use Launch X431 Diagun IV



Here, I’m gonna to show you how to use a Launch X431 Diagun IV to test a car.

(sorry for the bad resolution of my photos; but the Launch has a good resolution – 1280 x 720 )
Launch-X431-Diagun-IV-manual-1

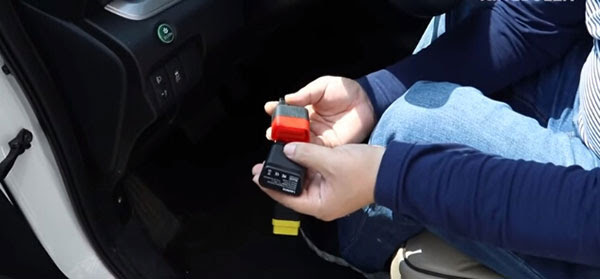

Connect it to your car with a 16-pin cable or via Bluetooth

Launch-X431-Diagun-IV-manual-2

I’m using Honda VCR
Launch-X431-Diagun-IV-manual-3

Enter X431 Diagun IV app

Then tap Diagnosis
Launch-X431-Diagun-IV-manual-4

Choose Honda
Launch-X431-Diagun-IV-manual-5

Then check connection to your car with a 16-pin cable or via Bluetooth

Gonna to the diagnostic test

The interface after a successful connection
Launch-X431-Diagun-IV-manual-6 Launch-X431-Diagun-IV-manual-7

Launch X431 Diagun IV is reading VIN code automatically

Launch-X431-Diagun-IV-manual-8 Launch-X431-Diagun-IV-manual-9

Now, i can see fault codes, read data stream…
Launch-X431-Diagun-IV-manual-10 Launch-X431-Diagun-IV-manual-11

It’s easy to use

Launch-X431-Diagun-IV-manual-12 Launch-X431-Diagun-IV-manual-13

Attach Launch X431 Diagun IV User Manual:

https://www.autonumen.com/goods-6598-Launch-X-431-Diagun-IV-Diagnotist-Tool.html

Satisfied! And it’s user-friendly.
